5000 series can be configured with most of the available end conditions       and actuation methods.

This series is standardly available with both ends standard only.  However the end caps can be readily reconfigured to meet your specific project needs.

B-Range C-Range

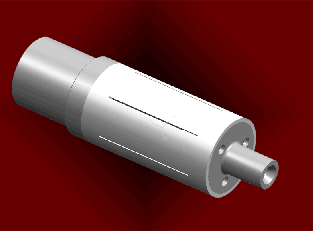

Typical 5000 series with one extended chucking end, one standard end and single actuation on both ends

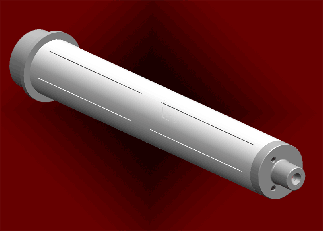

5000 series 36” length with two different extended ends, single actuation both ends.

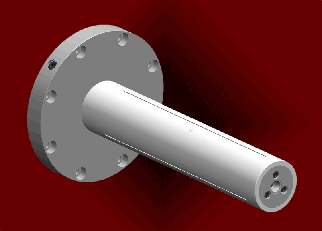

5000 series with a mounting plate added to a flanged end and one end with provisions for a custom clamp for ablind part application.  Single side actuation on the flanged end .

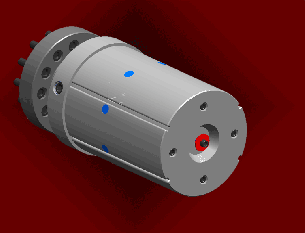

5000 series with large mounting plate - flange combo with side and end actuation

Part-Number-Layout-pop-up.png 5000 Series Pricing.htm D-Range # 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf Part-Number-Layout-pop-up.png 5000 Series Pricing.htm # 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf Part-Number-Layout-pop-up.png 5000 Series Pricing.htm # 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf Part-Number-Layout-pop-up.png 5000 Series Pricing.htm #

5000 series with asymmetrical end conditions Single actuation on both ends.

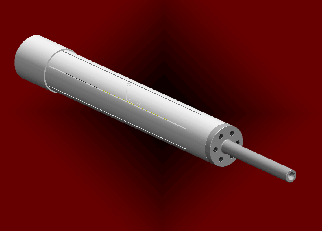

5000 series with single actuation on both ends.  A long extended end and part stop.

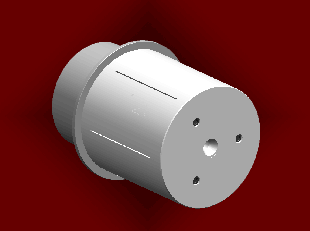

5000 series with single end actuation.  End cap with part stop and large chucking diameter.

Standard Available Diameters

Range Letter

Max Body

Min Body

A1

3.750

3.500

A2

4.000

3.750

A3

4.250

4.000

B1

4.750

4.250

B2

5.250

4.750

C1

5.750

5.250

C2

6.250

5.75

D1

6.750

6.250

D2

7.250

6.750

E1

7.750

7.250

E2

8.250

7.750

#EndConditions #ActuationMethods

50A1S8WL12SBSACS-155

50A1S12WL16SBSACS-156

50A1S20WL24SBSACS-157

50A2S8WL12SBSACS-158

50A2S12WL16SBSACS-159

50A2S20WL24SBSACS-160

50A3S8WL12SBSACS-161

50A3S12WL16SBSACS-162

50A3S20WL24SBSACS-163

5k expanding mandrel sample dwg.pdf

50B1S8WL12SBSACS-164

50B1S12WL16SBSACS-165

50B1S20WL24SBSACS-166

50B2S8WL12SBSACS-167

50B2S12WL16SBSACS-168

50B2S20WL24SBSACS-169

50C1S8WL12SBSACS-170

50C1S12WL16SBSACS-171

50C1S20WL24SBSACS-172

50C2S8WL12SBSACS-173

50C2S12WL16SBSACS-174

50C2S20WL24SBSACS-175

5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf 5k expanding mandrel sample dwg.pdf Part-Number-Layout-pop-up.png 5000 Series Pricing.htm #

50D1S8WL12SBSACS-176

50D1S12WL16SBSACS-177

50D1S20WL24SBSACS-178

50D2S8WL12SBSACS-179

50D2S12WL16SBSACS-180

50D2S20WL24SBSACS-181

50E1S8WL12SBSACS-182

50E1S12WL16SBSACS-183

50E1S20WL24SBSACS-184

50E2S8WL12SBSACS-185

50E2S12WL16SBSACS-186

50E2S20WL24SBSACS-187

E-Range

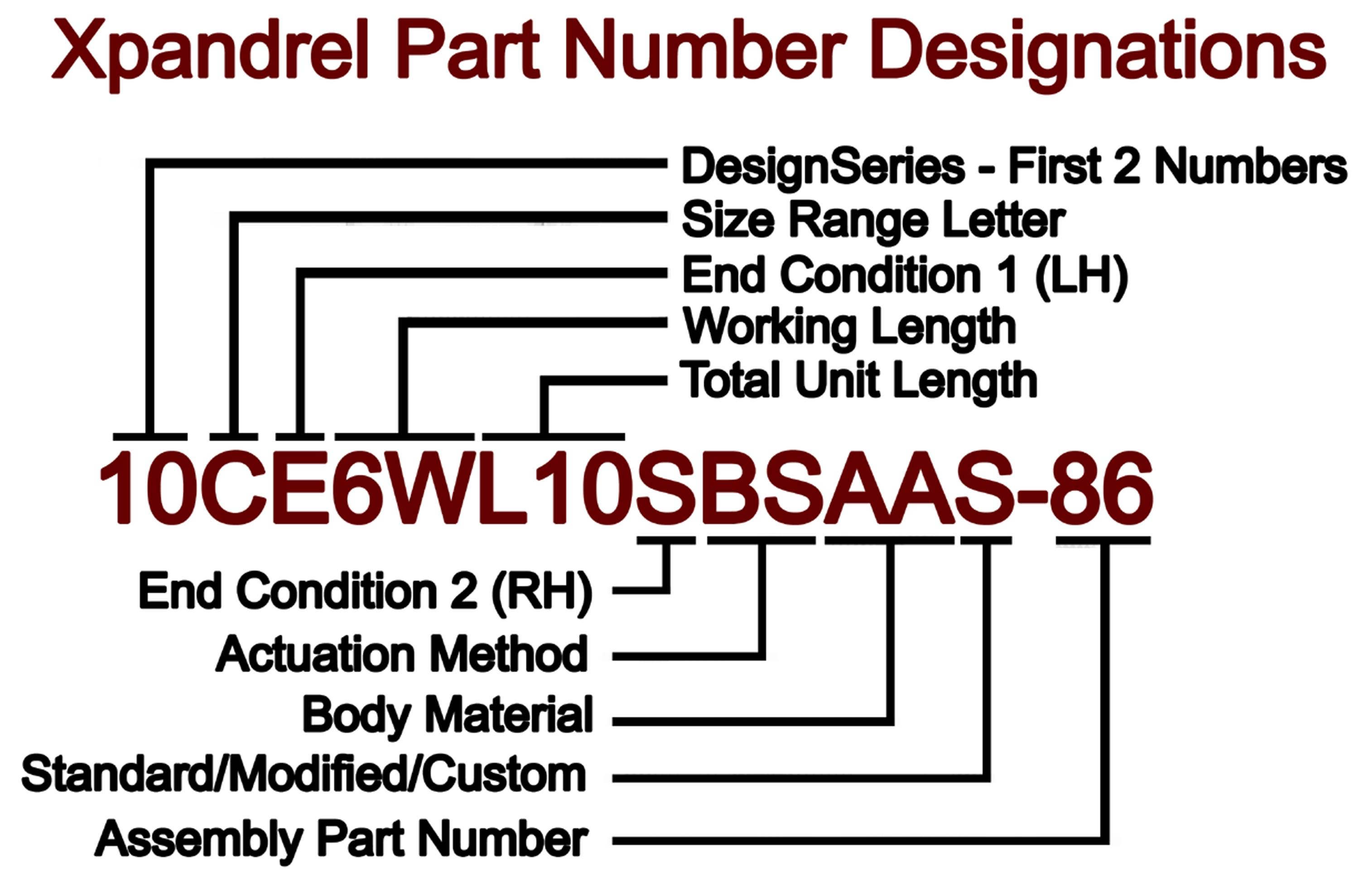

How do I read Xpandrel part numbers


What materials can be used

Part-Number-Layout-Webby.png #Material
